Google Cloud Setup

PreviousConfiguring CDR and PCAP BackupNextConfiguring SIP Registration

Last updated 3 years ago

Was this helpful?

Step 1: Create a Google Cloud Project

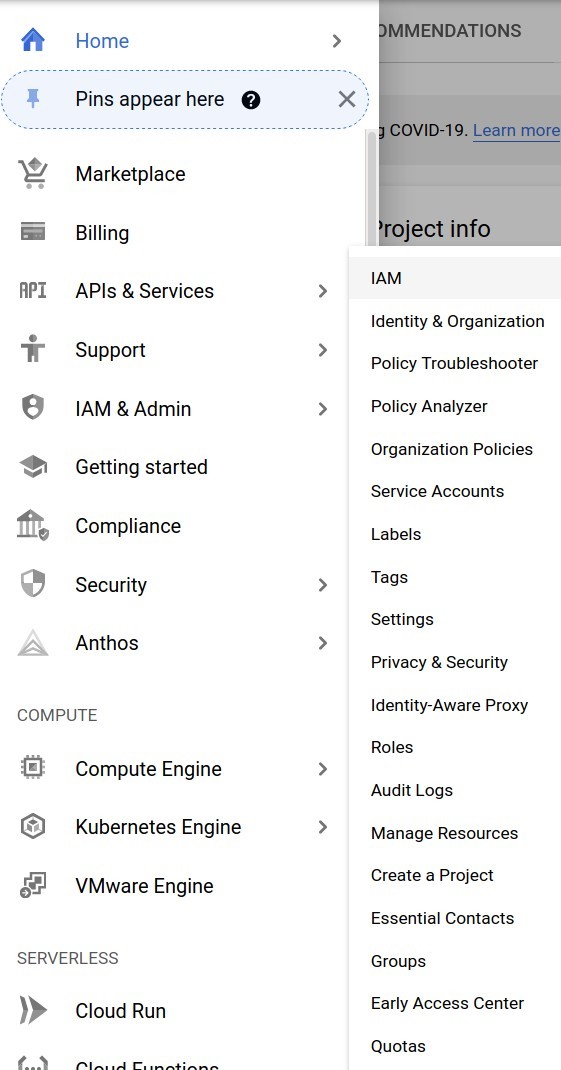

Step 2: Go to IAM & Admin -> IAM

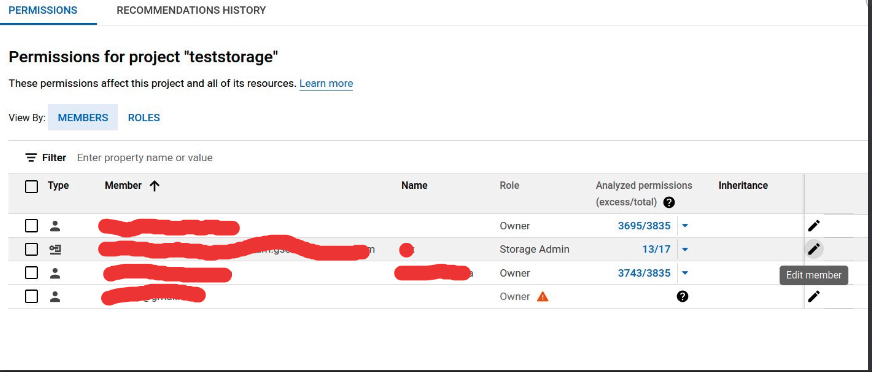

Step 3: Find service account, and press "Edit member" (pen button) on the right side of it

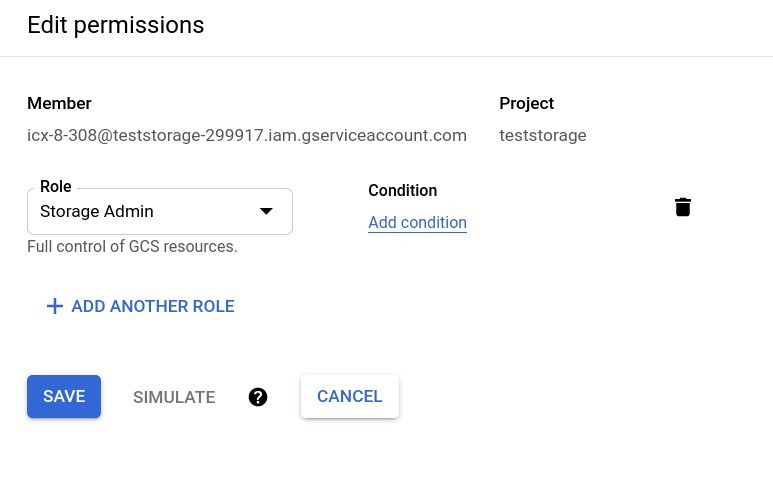

Step 4: Press "Add condition"

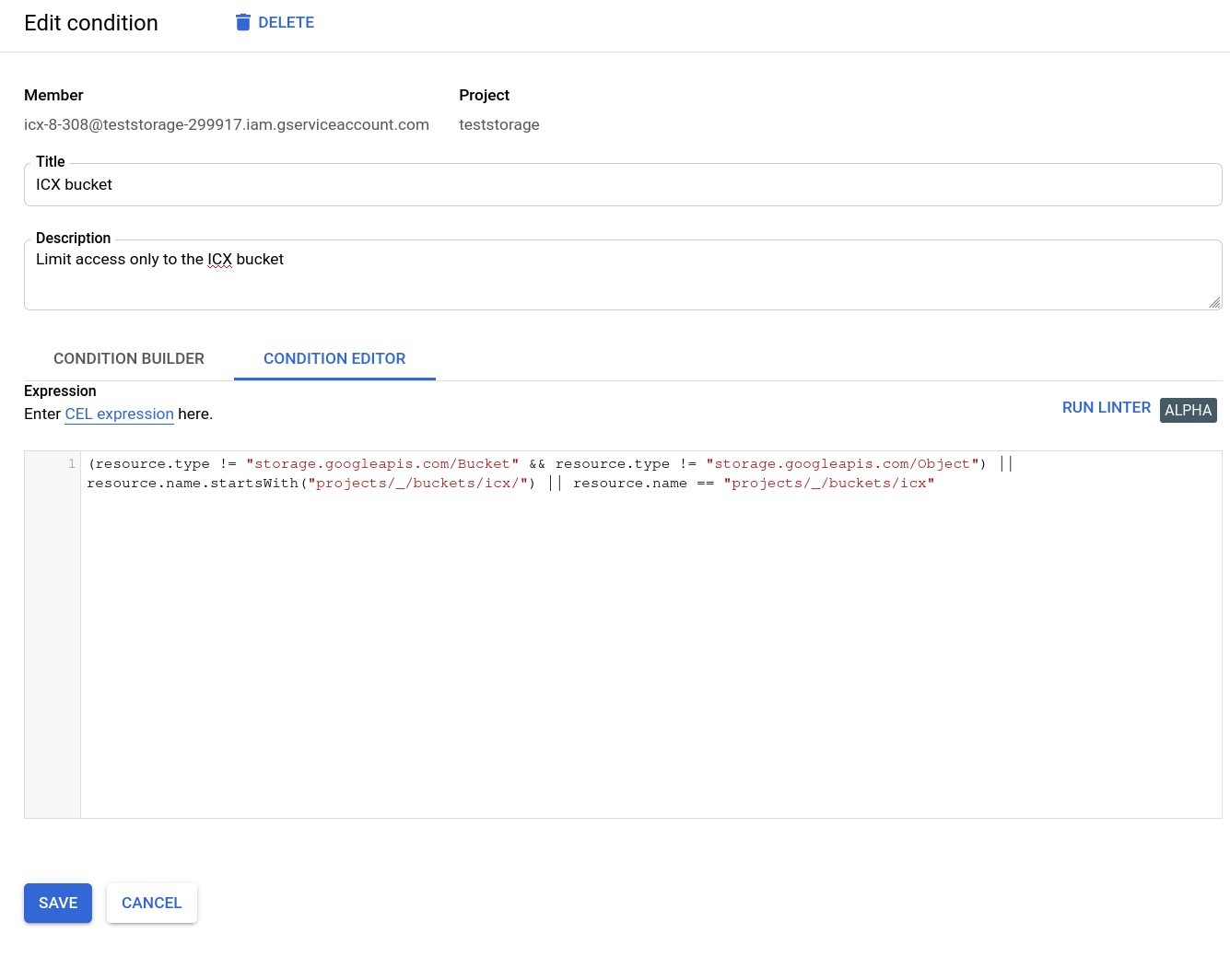

Step 5: Open "Condition Editor" and put the expression, filling the bucket name

(resource.type != "storage.googleapis.com/Bucket" && resource.type != "storage.googleapis.com/Object") || resource.name.startsWith("projects/_/buckets/<name>/") || resource.name == "projects/_/buckets/<name>"

Step 6: Press Save in both condition editor and permissions editor. Otherwise it will be canceled

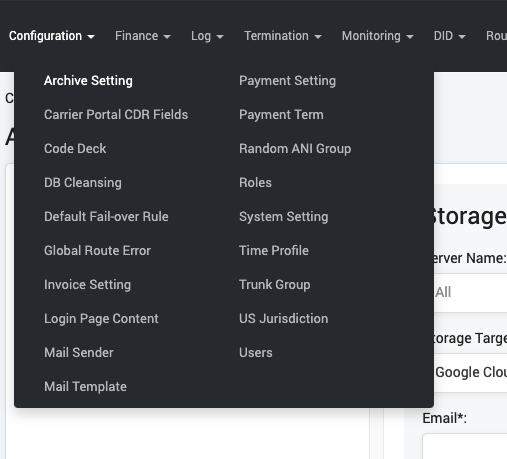

Step 7: Go To Class 4 and Open the Archive Setting page

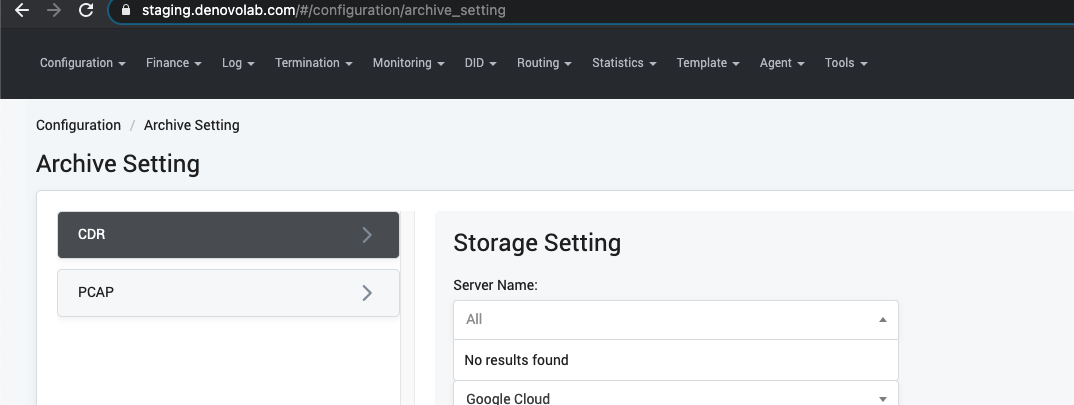

Step 8: Select Server Name

Class 4 platform select using multiple sip switch server. Each sip switch server has its own directory for storing backup data.

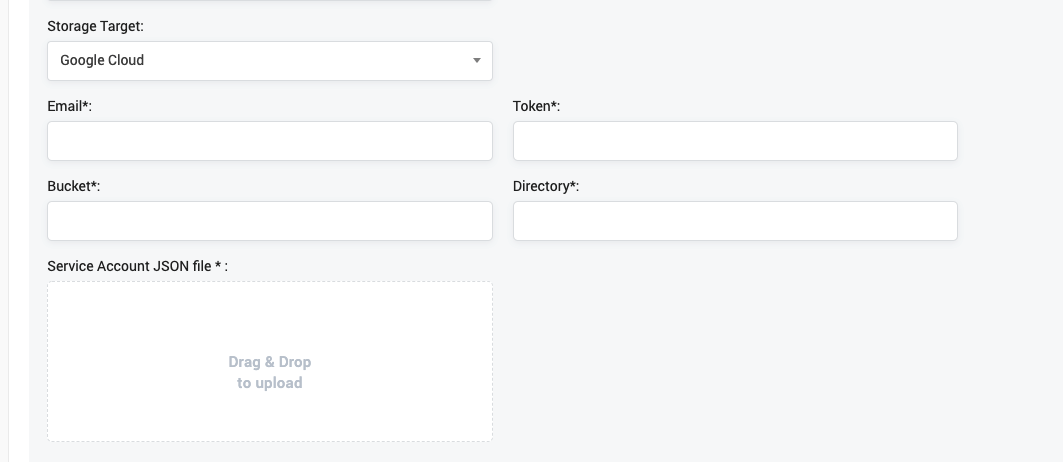

Step 9: Select where you want to store the data

Here is a video showing you how can obtain the Google Cloud Service Key json file:

https://drive.google.com/file/d/1Loon-8jWRZdDiUg0251sODHswqIBIeyf/view?usp=sharing
